LiftMaster 98022 vs 98032: which wall mount opener does your door need?

Both of these are LiftMaster wall mount openers. They bolt to the wall beside the door and turn the torsion shaft directly, instead of hanging from a rail under the ceiling. Every figure below comes from LiftMaster’s own product pages for the 98022MC and the 98032MC, linked at the bottom. Where LiftMaster does not publish something, this guide says so rather than filling the gap, because the reseller listings that do fill it contradict each other.

What the two have in common

Start here, because the overlap is most of the product. Both mount on the wall beside the door. Both run on DC power with battery backup, so the door still opens in a power cut. Both are listed at 1,000 lumens of remote LED lighting. Both have Timer to Close. Both arrive with the 841LM automatic garage door lock, the 485LM battery and the 880LMW Smart Control Panel. Both carry a lifetime motor warranty and five years on parts. And LiftMaster describes both as having no cable tension monitor, which it presents as making the installation simpler.

So this is not a choice between a basic opener and a good one. It is a choice of weight rating.

The spec sheet, side by side

The number that actually decides this

LiftMaster rates the 98022 to lift doors up to 850 lbs. It rates the 98032 for doors from 400 lbs to 1,100 lbs, and states that the rating is UL325 certified.

Read the 98032 figure again, because the bottom of it is unusual on a spec sheet. It is not rated from zero. LiftMaster publishes it as a band, 400 to 1,100, which is how heavy duty equipment normally gets specified: built for work inside that range rather than for the lightest doors on the market.

The practical consequence is that these are not the good and better versions of one opener. They are sized for different doors, and the heavier one is not automatically the safer buy.

You cannot tell what a door weighs by looking at it

This is the part that gets skipped, and it is the part that decides the answer. Two doors of the same size, the same colour and the same number of panels can be separated by hundreds of pounds, because what sets the weight is what the sections are made of and what is inside them. A plain steel door, an insulated steel door, a solid wood door and an aluminum and glass door of identical dimensions are four different weights.

So choosing between an 850 lb rating and a 1,100 lb rating is not something you do by looking at the door. You do it by knowing its weight. On site that is a measurement: the opener comes off, the door is supported, and it is weighed, or it is calculated from its construction and its size. The same number sets how the springs are sized, so anyone quoting you an opener without it is also quoting you springs without it.

What is in each box

Nearly the same, with one difference. Both include the 841LM automatic garage door lock, the 485LM battery, the 880LMW Smart Control Panel and an L993M three button remote. The 98032 adds a 893MAX three button visor remote, so it arrives with two remotes rather than one.

The 841LM is worth pulling out of that list rather than skimming past it. It is an automatic deadbolt that locks the door when it closes, and LiftMaster ships it with both of these rather than selling it as an add on.

What the 98032 publishes that the 98022 does not

Three things appear on the 98032 page and not on the 98022 page: the motor listed as DC 24V, the UL325 certification, and a one year battery warranty broken out on its own line.

That is a difference in what LiftMaster publishes about each model, not proof of a difference in the hardware. The 98022 page lists a DC motor among its replacement parts without giving the voltage as a specification. If one of those details is the thing your decision turns on, ask the dealer for that model’s installation manual and read the specification page in it, rather than trusting any web listing, including this one.

A bigger opener does not fix a heavy door

Worth saying plainly, because reaching for the heavier model is a common way to try to solve the wrong problem. The opener does not carry the garage door. The springs do. A correctly balanced door stays roughly where you leave it when you lift it halfway by hand with the opener disconnected, and from there the opener only has to overcome friction and whatever small amount the springs do not balance.

If a door is out of balance, a higher rated opener will still move it. It will just be dragging a door that is fighting itself, and what gives way first is usually a cable, a bearing or the door’s own hardware rather than the motor. The weight rating is for matching an opener to a healthy door. It is not a way to compensate for a spring system that is wrong.

Why a wall mount opener at all

Either model solves the same problem, and the problem is usually the ceiling rather than the door. A trolley opener needs a rail running back from the door header and solid framing to hang it from. Where the garage has open trusses, a low or finished ceiling, storage overhead, a car lift or ductwork in the way, that rail is awkward at best. A wall mount opener removes the question: it bolts beside the door and the ceiling stays empty. LiftMaster also describes both of these as ultra quiet and vibration free, which matters most when there is living space directly above the garage.

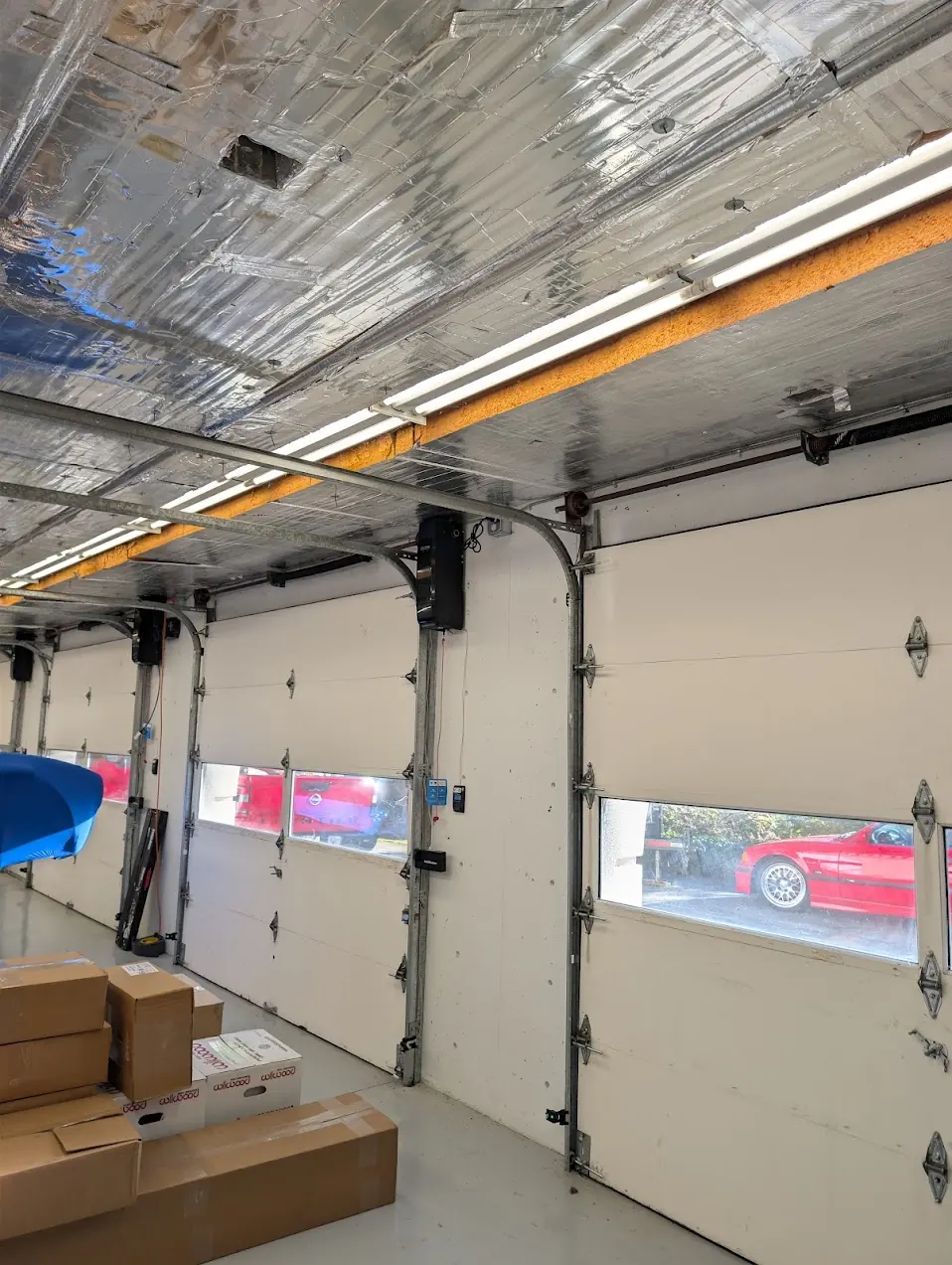

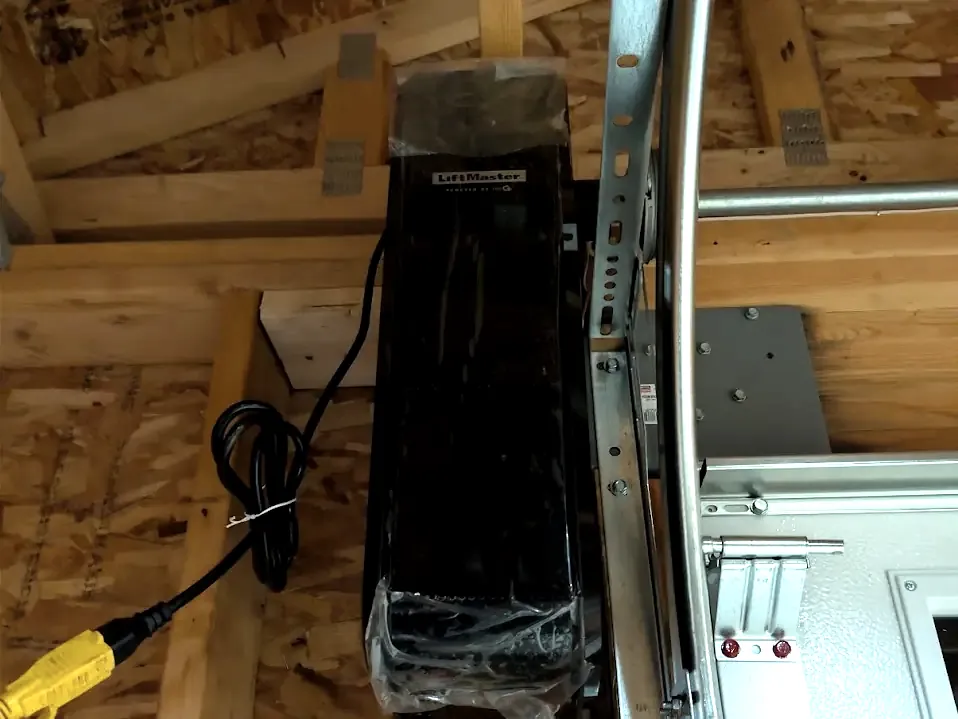

The four openers in our Shoreline job are 98022s, going into a concrete four bay shop where the ceiling was insulated end to end and there was nothing to hang a rail from. The Federal Way install used a wall mount for the same reason, open trusses with lights strung between them. If you are weighing up the type rather than the model, our garage door opener installation page covers the rest.

How to choose

In order:

1. Find out what the door weighs. Not its size, its weight.
2. Comfortably under 850 lbs, the 98022 is the model, and the 98032 buys you headroom you will never use.
3. Over 850 lbs, or close enough that you would rather not sit at the edge of a rating, the 98032 is the model.
4. If the door is light, note that the 98032 range starts at 400 lbs, and ask your installer whether the heavy duty unit is the right match at all.
5. Either way, have the balance checked and the springs sized before the opener goes on, not after.

Sources

• LiftMaster, 98022MC Premium Series DC Battery Backup Wall Mount Wi-Fi Garage Door Opener, product specifications, liftmaster.com
• LiftMaster, 98032MC Premium Series Heavy Duty DC Battery Backup Wall Mount Wi-Fi Garage Door Opener, product specifications, liftmaster.com

Frequently asked questions

What is the difference between the LiftMaster 98022 and the 98032?

The weight rating. LiftMaster lists the 98022 as lifting doors up to 850 lbs, and the 98032, which it calls Heavy Duty, as UL325 certified for doors from 400 lbs to 1,100 lbs. Almost everything else matches: both are wall mount openers with DC power and battery backup, 1,000 lumens of remote LED lighting, Timer to Close, the 841LM automatic lock, the 485LM battery and the 880LMW Smart Control Panel, with a lifetime motor warranty and five years on parts. The 98032 also ships with a second remote, the 893MAX visor remote, on top of the L993M that both include.

Which LiftMaster wall mount opener do I need for a solid wood garage door?

That depends on what the door weighs, and a wood door is exactly the case where you cannot guess. Solid wood and carriage house construction is where doors climb past what a standard residential opener is rated for, so the 98032 and its 1,100 lb rating is the one to price. Before ordering either, have the door weighed. The same number decides how the springs are sized, so it has to be known anyway.

Do both openers come with the automatic garage door lock?

Yes. LiftMaster lists the 841LM automatic garage door lock in the box with both the 98022 and the 98032, along with the 485LM battery and the 880LMW Smart Control Panel. It is an automatic deadbolt that locks the door when it closes.

Will a higher rated opener make my garage door last longer?

No, and it is worth being clear about why. The opener does not carry the door. The springs do. A balanced door stays put when you lift it halfway by hand with the opener disconnected, and from there the opener only has to overcome friction. If the door is out of balance, a heavier rated opener will still move it, but it is dragging a door that is fighting itself, and what fails first is usually a cable, a bearing or the door hardware. Get the balance and the springs right first, then choose the opener.

Can a wall mount opener be fitted to any garage door?

Not to every one. A wall mount opener drives the torsion shaft directly, so the door needs a torsion spring system across the header rather than extension springs running along the tracks, and there has to be room beside the door for the unit itself. Where those conditions are not met the door either needs converting first or a different type of opener. It is a measurement, not a guess, and it is the first thing we check on site.
